Overview

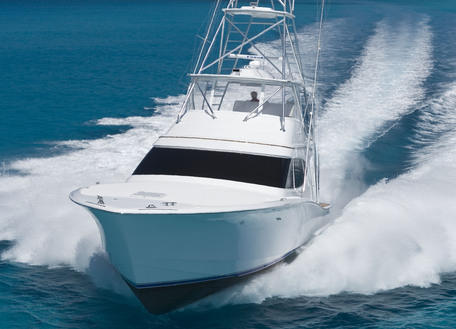

The new Hatteras GT54 is the lightest, quickest, and most nimble member of the new GT Series. Whether in the hunt for a trophy, or simply enjoying a fast day on the water, the GT54 delivers big. Performance and styling are equally important to the tournament fisherman, and the new GT54 is designed for that customer. With over 50 years of experience building premium sport fishing convertibles, Hatteras has an unrivaled amount of knowledge when it comes to discerning the preferences of convertible owners. Ride comfort and seakeeping in rough water are also a big part of our pedigree. The GT54 is a Hatteras in the purest sense. It can take abuse offshore and come out looking like it’s in showroom condition.

Specifications

Engines:	(Standard) Twin CAT C18 Diesel Engines 1150 BHP/(Optional) Twin CAT C32A Diesel Engines 1600 BHP	Hours:	N/A
Cruise High:	30.0 Knots	Cruise Low:	N/A
Max Speed:	33.0 Knots	Hull:	Fiberglass
Length:	53' 10"	Beam:	17' 3"
Draft:	4' 2"	Fuel:	1200 gal
Water:	200 gal	Displacement:	75000 lbs

Features

Interior

Interior Wood Selections

*Flat panel cabinetry, mahogany or cherry with satin finish

Galley/ Dinette

Amtico vinyl flooring
Fabric headliner installed on track system for service access
Fixed frameless windows with tinted safety glass
Microwave/convection oven covered by cabinet door
DC LED lighting
DC Dimmable Lights
AC duplex outlets
L-shaped dinette with storage under seat
Solid-surface countertops with sink and storage cabinets made of finished wood
AC undercounter refrigerator and freezer drawer units (2)
AC four-burner ceramic cooktop
One-half hp continuous feed garbage disposal
Drawers (2) in galley fascia, (4) in upper cabinets behind doors
Air conditioning dispersed through fluted wood valances, port and starboard

Salon

Carpeting
Fabric headliner with wood accents installed on track system for service access
Hinged glass door to cockpit
32” HD LCD TV with omni-directional antenna
Bose home theater with AM/FM, CD/DVD, and surround sound speakers
Fixed frameless windows with tinted safety glass
DC LED lighting
DC dimmable lights
AC duplex outlet(s) with ground fault protection
L-shaped lounge with rod storage, loose cushions, arm rests and double needle stitching
Throw pillows
Air conditioning dispersed through wood valances, port and starboard
Carbon monoxide detector
Smoke detector
SMX HVAC compartment controlled
Polished stainless-steel threshold at salon door

Compainonway

Carpeting
Fabric headliner installed on track system for service access
Fabric covered hullside(s) and bulkhead(s) installed on track system for service access
Flush-panel wood doors to master stateroom, guest stateroom and guest head
Steps to salon
DC LED lighting
Access to port & starboard storage, electric panels, and electric water tank gauge with DC light
Wainscoting

Master Stateroom

Carpeting
Fabric headliner installed on track system for service access
Fabric covered hullside(s) and bulkhead(s) installed on track system for service access
Queen-sized tapered berth with upholstered headboard and cedar-lined storage underneath accessed via pneumatic cylinders
Upholstered berth base
HMC System 1 mattress, spread, throw pillows, pillows, pillow shams, mattress pad and sheets(E)
Cedar-lined hanging locker with doors, shelf and automatic light
Nightstands with drawers
Dresser with drawers
19” LCD TV
Bose 3-2-1 GS with AM/FM and DVD/CD w/speakers
Full-length mirror
DC LED lighting
DC dimmable lights
DC low-voltage lights under berth
AC duplex outlet(s) with ground fault protection
Private access to head
Smoke detector
Carbon monoxide detector
Air conditioning dispersed through wood valance
SMX HVAC compartment controlled

Bow Guest Room

Carpeting
Fabric headliner installed on track system for service access
Fabric covered hullside(s) and bulkhead(s) installed on track system for service access
Queen-sized tapered berth with upholstered headboard and cedar-lined storage underneath accessed via pneumatic cylinders
Upholstered berth base
HMC System 1 mattress, spread, throw pillows, pillows, pillow shams, mattress pad and sheets(E)
Cedar-lined hanging/storage lockers with automatic light
Nightstands, port and starboard
DC AM/FM stereo receiver with CD player and speakers
Full-length mirror
DC LED lighting
AC duplex outlet(s) with ground fault protection
Private access to head
Smoke detector
Carbon monoxide detector
SMX HVAC compartment controlled
Screened overhead hatch with privacy cover
Washer/dryer

Optional Bow Guest Stateroom

Carpeting
Fabric headliner installed on track system for service access
Fabric covered hullside(s) and bulkhead(s) installed on track system for service access
Double sized berth to port and single sized berth to starboard, with storage underneath
Upholstered berth base
HMC System 1 mattresses, spreads, throw pillows, pillows, pillow shams, mattress pads and sheets(E)
Cedar-lined hanging/storage lockers with automatic light
DC AM/FM stereo receiver with CD player and speakers
Full-length mirror
DC LED lighting
DC low-voltage lights under berth
AC duplex outlet(s) with ground fault protection
Private access to head
Smoke detector
Carblon monoxide detector
SMX HVAC compartment controlled
Screened overhead hatch with privacy cover
Linen storage, port
Washer/dryer

Starboard Guest Stateroom

Carpeting
Fabric headliner installed on track system for service access
Fabric covered hullside(s) and bulkhead(s) installed on track system for service access
Side by side twin berths with storage underneath outboard berth via pneumatic cylinder
Upholstered berth bases
HMC System 1 mattresses, spreads, pillows, pillow shams, mattress pads and sheets(E)
Double cedar-lined hanging locker with doors, shelf and automatic light
Nightstand with drawers
Full-length mirror
DC LED lighting
AC duplex outlet(s) with ground fault protection
Private access to head
Smoke detector
Carbon monoxide detector
SMX HVAC bow compartment controlled

Master Head

Amtico vinyl flooring
Fabric headliner installed on track system for service access
Wallcovering
Solid-surface countertop, backsplash, and side splash with integral sink
Hardwood baseboards
Stall shower with door and automatic sump pump
Storage cabinet with mirror above sink
Base cabinet with storage
Towel bar
Headhunter freshwater toilet
120 volt AC air freshener blower
DC LED lighting
AC duplex outlet(s) with ground fault protection
Plexi-mirror around upper cabinet
Air conditioning discharge
Holding tank 3/4 full indicator lights

Guest Head

Amtico vinyl flooring
Fabric headliner installed on track system for service access
Wallcovering
Solid-surface countertop, backsplash, and side splash with integral sink
Hardwood baseboards
Stall shower with door and automatic sump pump
Storage cabinet with mirror above sink
Base cabinet to match interior finish with storage
Towel bar
Headhunter freshwater toilet
120 volt AC air freshener blower
DC LED lighting
AC duplex outlet(s) with ground fault protection
Plexi-mirror around upper cabinet
Air conditioning discharge
Holding tank 3/4 full indicator lights

Exterior

Exterior Finish/Construction

Isophthalic gelcoat, exterior layer, white
Blister-resistant vinylester resin in hullbottom skin coat
Hull and superstructure linear polyester/polyurethane coating
Polymer/copper-based anti-fouling bottom paint
Boot stripe, linear polyester/polyurethane coating
Decks, non-skid surface, polyurethane paint with polymeric beads
Solid fiberglass hull bottom
Hull sides and superstructure laminated with PVC foam core
Fiberglass stringers
Steel laminated in stringers at key locations tobolt engine mounts
Engine room bulkheads and decks of resin-infusedcomposite construction using PVC foam core with layers of fiberglass laminate on each side
Painted black mask

Engine Compartment & Bilge

Pultruded fiberglass rudder shelf
AC fluorescent lights
DC lights
DC exhaust blowers
Twin diesel, freshwater-cooled main engines with electrically controlled marine gears, neutral interlocks, exhaust silencers, engine hour meters, alternators, fuel
filters and seawater strainers
FM200 fixed fire extinguishing system for engine compartment with automatic and remote manual controls, plus audible and visual discharge signals
One 21.5kW freshwater-cooled Electronic Quiet Diesel Onan generator(D) with shock mounts, seawater strainer, remote start, fuel/water separator, hour
meter, exhaust water separator and sound enclosure.
Polyethylene water lines
Freshwater connection
24-volt DC bilge and sump pumps: three at 3700 gph, two at 2000 gph and four at 1100 gph, with heavy-duty float switches and protective guards
Auxiliary emergency bilge pump, 150 gpm in lazarette
Bronze/chrome plated ball-valves through-bolted in solid fiberglass on all underwater through hull fittings with electrical bonding throughout
Pressurized 230 volt AC freshwater pump
230-volt AC 20-gallon electric water heater
Integral fiberglass fuel tank constructed with fireretardant resin and bronze fittings, and coated with fire-retardant paint
Polyethylene water tank
Polyethylene sewage holding tank with 24 volt DC sewage pump, plumbed for dockside pump-out with 3/4 full display and alarm as part of systems monitor
programmable logic controller
24-volt DC oil changing system for engines, gear and generator with Hatteras patented quick disconnect
U.L. Marine-listed fuel filter/water separator, generator
Sealed shower sump
U.L. Marine-listed duplex fuel filters/water separators with bypass manifold, engines
Powder coated grab rails
Painted polyurethane engine room and bilges
Air conditioning compressors and pumps
United States Coast Guard type A1 U.L. Marine-listed fuel lines
Isolated discharge sea chests
1” stainless-steel steering tie bar with pivoting selfaligning ball joint connection at all cylinder and tie bar connections
Insulation in deck
Pick-up sea chests
DC voltmeter in battery panel
Start / stop switches and hour meter
Rubber deck mat between engines
Transducer well, glycol filled

Flybridge

Systems monitor with programmable logic controller readout, visual and audible signals for engine, alternator, high bilge water, fire warning in engine compartment, fire extinguisher discharge, AC power loss, smoke detectors, battery voltage, 3/4 full holding tank monitor, and carbon monoxide detectors
Molded fiberglass
Icom VHF, Furuno RD30 depth and temp
Polished anodized welded aluminum rails and stanchions
Two bench seats with removable vinyl-covered polyfoam cushions and storage underneath
Control station with all necessary switches and dimmable lighted instrument panel
Compass with dimmable light
Pod console with custom wheel and single-lever clutch and throttle controls (electronic) with emergency back-up, engine synchronization, and trolling valve
control switches
Hydraulic power-assisted steering
(2) Adjustable helmchairs
DC AM/FM stereo receiver with CD player and speakers
Neutral interlock switches allowing engine to start in neutral only
Fuel level gauges
Rod storage space in port bench seat
Top-loading insulated drink box
Additional storage areas beneath seat(s) and console
Powder-coated grab rails

Cockpit

Molded fiberglass, 135 square feet including mezzanine with seating
Seating with cushions across upper mezzanine
Polished anodized aluminum ladder to flybridge with acrylic steps
Transom door
Fiberglass cockpit boarding step box with storage
Hinged glass door to deckhouse
Stereo speakers with volume control
DC LED overhead lights under flybridge overhang
Molded-in grab rails on cabinside
Hatch with chrome plated brass lock to engine compartment
Freshwater wash down outlet
Shore water connection with pressure-reducing valve
Bait and Tackle Center with 3 drawers
5.4-cubic-foot bait freezer, port mezzanine
Insulated storage box in mezzanine
Storage tub, lower port mezzanine
Removable 80” fish box with macerator, flush in deck
Storage in steps to deckhouse with chill box in top step
Lazzarette access through hatch
Aluminum mounting plate laminated in deck for fighting chair
Polished stainless-steel rod holders, flush mount, set of 4
Scuppers in cockpit and cockpit hatches

Additional

Hardware/Miscellaneous

Wood bulkheads, cabinetry and trim with a polyester finish in cherry or African mahogany
All hardware in satin nickel
Fortress FX-55 anchor, anchor line and deck hawse pipe with anchor tensioner
Four polished stainless-steel springline cleatswith chafing strips, through-bolted in aluminum backing plate
Polished stainless-steel bow cleats and chocks with chafing strips, through bolted in aluminum backing plate
Two polished stainless-steel stern cleats and hawse pipes, through-bolted in aluminum backing plate
Polished anodized welded aluminum rails on bow, side-deck and flybridge, drilled and tapped in aluminum backing plates
Fog bell
Dual air/electric horn
Zincs on rudders and shafts
Black braided nylon mooring lines (6)
Alloy 22 high-strength propeller shafts, 3”
Manganese bronze dripless rudder seals
Dripless shaft seals with spare seals
Life jackets (6)
Life ring
Portable “drychem” fire extinguishers (4), U.L. approved type in compliance with United States Coast Guard and ABYC standards
Interceptor trim control
Manganese bronze struts
Stainless-steel rudders
7-blade propellers, Nibral high performance
Reboarding steps to cockpit
Black fenders (3)
Deck plates for fuel and water fills and waste pump out
Heavy duty engine couplings
Anchor locker on bow deck
